24V Zero Pressure
Accumulation Conveyor
Motor Driven Roller technology that only activates when product is present — quieter, safer, and up to 50% more energy efficient than traditional belt conveyors.
Smarter Conveyor.
Lower Cost to Run.
Itoh Denki invented the Motor Driven Roller in 1975. Their 24V brushless DC Power Moller is the global standard for zero pressure accumulation — and the natural companion to our robot palletizing and depalletizing systems.
Zero Pressure
Accumulation Explained
In a traditional belt conveyor, product piles up with force — cases bump into each other, labels get damaged, and the motor runs continuously whether product is present or not. Itoh Denki ZPA eliminates all of this.
Each zone has its own 24V brushless DC motor. When a sensor detects no product in a zone, that zone stops. When product arrives, it starts. The result: silent, energy-efficient conveying with zero product contact pressure.
ZPA vs. Traditional Belt Conveyor
| Feature | Itoh Denki ZPA | Traditional Belt |
|---|---|---|
| Energy Use | Run-on-demand | Always running |
| Noise Level | Very quiet | Loud |
| Product Contact | Zero pressure | Pressure accumulation |
| Voltage | 24V DC (safe) | 120V – 480V AC |
| Zone Control | Built-in per zone | Requires PLC logic |
| Belt Maintenance | No drive belts | Regular belt changes |

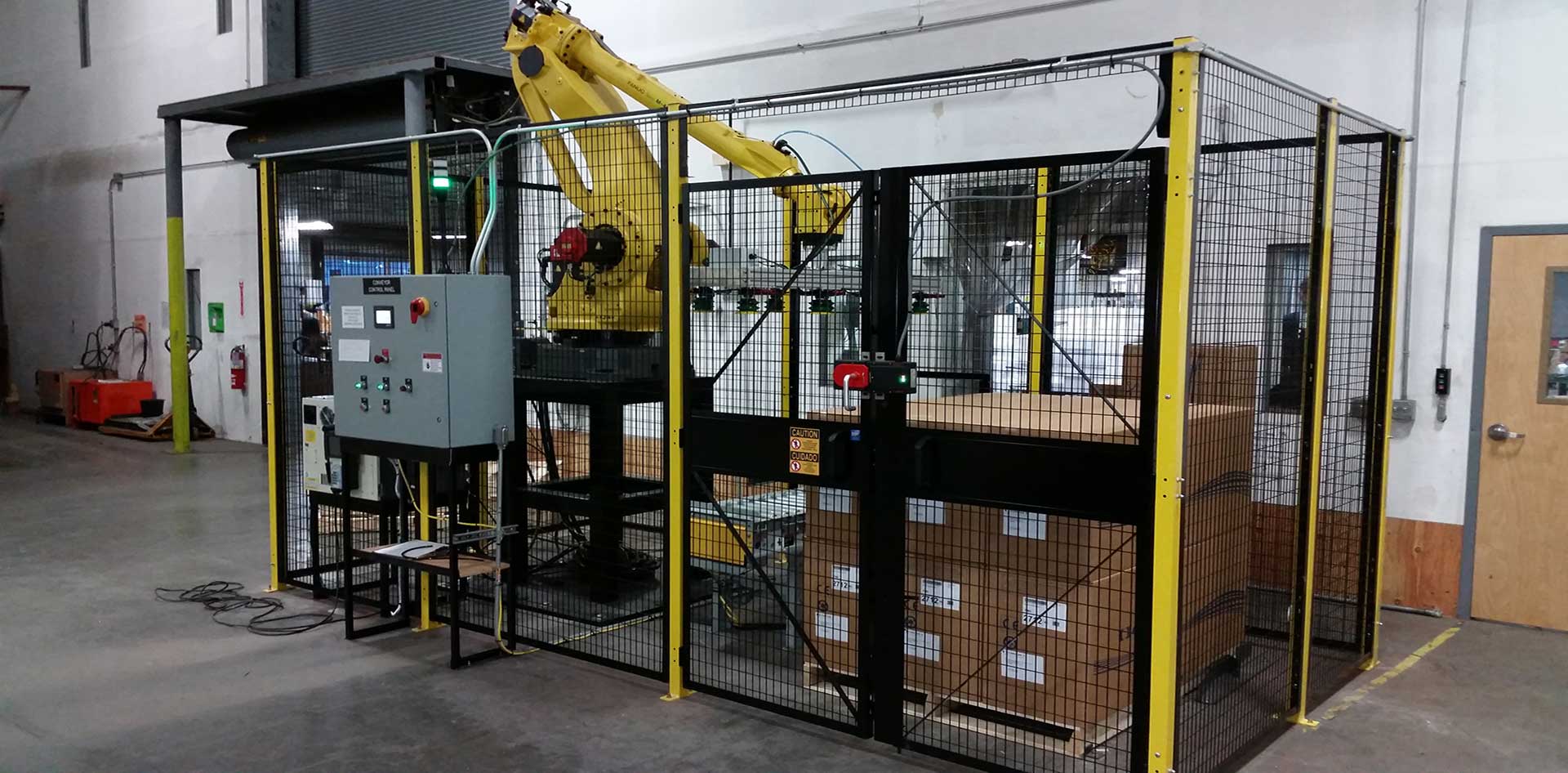

ZPA conveyor integrated into palletizing and depalletizing cells
Itoh Denki Product Line
All Itoh Denki products available. The following are the most commonly specified in our palletizing and depalletizing cells.
PM486FH / PM486FE — Power Moller® 24
The workhorse of the Itoh Denki family. 1.91" diameter, 24V brushless DC, 9-pin JST connector. Used in the majority of ZPA conveyor applications from light to medium-duty loads. 25–196 FPM speed range.
PM635KT — 2.5" Pallet-Capable Roller
Designed for heavy pallet conveying and large unit loads. 10-amp high-torque model available. Compatible with HBK-608F ZPA driver cards for full accumulation zone control on pallet in/outfeed.
HBK-608F — 2-Zone ZPA Hybrid Driver Card
Zero Pressure Accumulation logic built in — no separate PLC needed for basic ZPA. Variable speed via 10-position rotary switch, PNP/NPN configurable, up to 30-motor daisy-chain. Works with PM486FH, PM635KT, PM570KT rollers.
F-RAT — 90° Right-Angle Transfer Module
3-in-1 MDR module: drives product forward, lifts, then transfers 90° via belt. Fully electric — no pneumatics or valves. Handles packages as small as 8.8" × 8.8" and loads up to 110 lbs. Drops into existing conveyor frames.
The Complete
Depalletizing Cell
Our most popular integration combines three technologies into a single turnkey cell — Itoh Denki ZPA conveyor feeds cases from a pallet, the FANUC CRX cobot picks them guided by Mech-Mind AI vision, and the ZPA conveyor delivers them downstream with zero contact pressure.
Add ZPA Conveyor to Your Cell
Itoh Denki MDR integrates natively with FANUC CRX cobots and Mech-Mind AI vision for a complete, turnkey depalletizing or palletizing solution.
